Hajdu AQ PT 1500 C2 ErP buffer tank
Hajdu AQ PT 1500 C2 ErP buffer tank
890 443 Ft
NEW

Hajdu AQ PT 1500 C2 ErP buffer tank

A stationary, closed system, 1500 liter buffer tank
Serves as a heat storage tank for hot water central heating systems
Contains 6 Rp 6/4” connection sockets for connecting heat generators and heat emitters
Buffer tank systems can also supply hot water when combined with an indirect tank
It has two heat exchangers, but an electric heating cartridge can also be installed
Uninsulated design, but can be purchased separately
The sensors can be placed in the casing pipes on the jacket
A safety valve and expansion tank must be installed
Does not have a drain and temperature sensor socket
Also an excellent choice for solar systems
Not suitable for storing drinking water
Can only be filled with heating water
90° socket layout
Long service life
Excellent quality
Hungarian product
3 year warranty
Energy efficiency rating: C

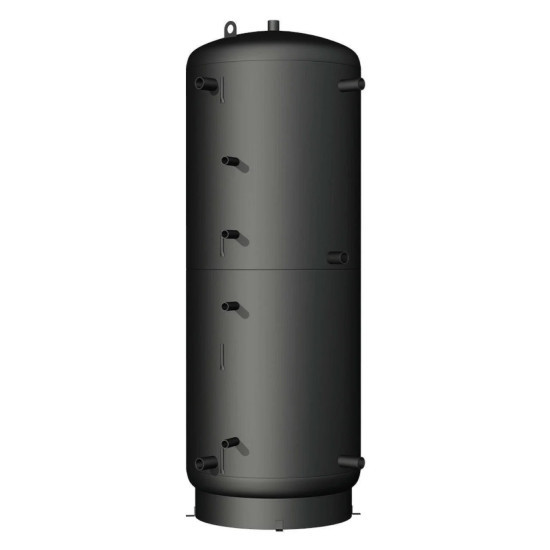

A picture is for illustration only!

In stock: 1 pcs
890 443 Ft
Bonus point : 8 904 Ft
Details

Nominal capacity: 1500 l
Height with insulation: 2190 mm
Tipping height without insulation: 2240 mm
Diameter with insulation: 1200 mm
Diameter without insulation: 1000 mm
Bottom coil surface: 3.6 m2
Upper coil surface: 2.4 m2
Maximum tank operating pressure: 0.3 MPa
Maximum solar coil operating pressure: 0.6 MPa
Maximum solar coil operating pressure: 0.6 MPa
Electric heater connection: Rp 6/4
Sensor connections: External casing pipe
Coil connection: Rp 1
Water connection: Rp 6/4
Storage loss: 170 W
Weight with insulation: 266 kg

Info
Article No.:
2223757024
Weight:
266 kg/pcs
