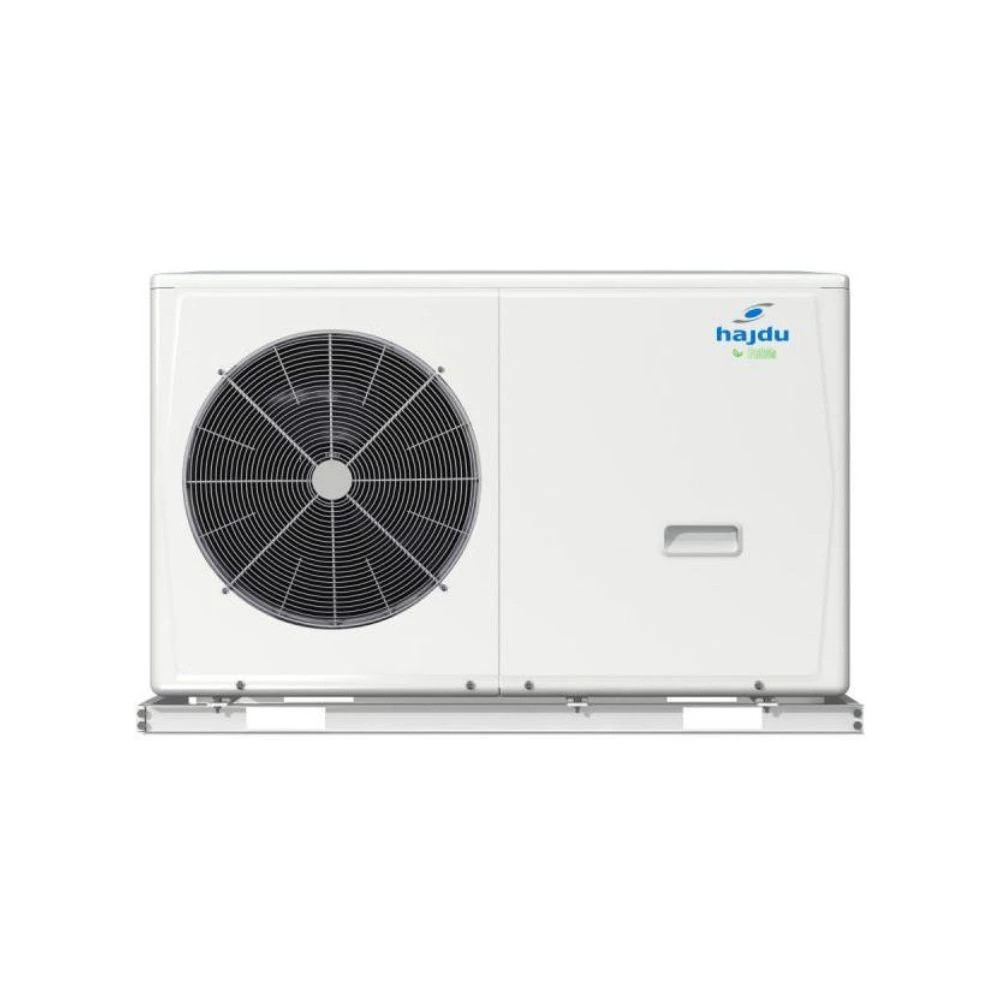

Hajdu HPAW-16 heat pump 16 kW 3N

Hajdu HPAW-16 3N Monobloc air-to-water heat pump 16 kW 3-phase
Voltage/Phase/Frequency V/PH/Hz 400/3/50
Heating (1)
Power kW 15.90
Power input kW 3.53
COP 4.50
Heating (2)
Power kW 16.00
Power input kW 4.57
COP 3.50
Heating (3)
Power kW 16.00
Power input kW 5.61
COP 2.85
Cooling (4)
Power kW 14.90
Power input kW 4.38
EER 3.40
Cooling (5)
Power kW 14.90
Power input kW 4.38
EER 3.40
Seasonal space heating energy efficiency class (6)
Flow 35°C Class A+++
Flow 55°C Class A++
Heat medium
Type (GWP) R32(675)
Filling weight kg 1.75
Noise level (7) dB 68
Overall dimensions (W×H×D) mm 1385x945x526
Packaging dimensions (W×H×D) mm 1465x1120x560
Weight kg 188
Outside air temperature
Cooling °C -5~43
Heating °C -25~35
DHW °C -25~43
Water side heat exchanger Plate type
Pump - Head m 9
Water side connection mm R5/4"
Additional electric heater
Standard installation kW 9
Power supply V/Ph/Hz 380-415/3/50
Flow temperature range
Cooling °C 5~25
Heating °C 25~65
DHW (tank) °C 30~60
