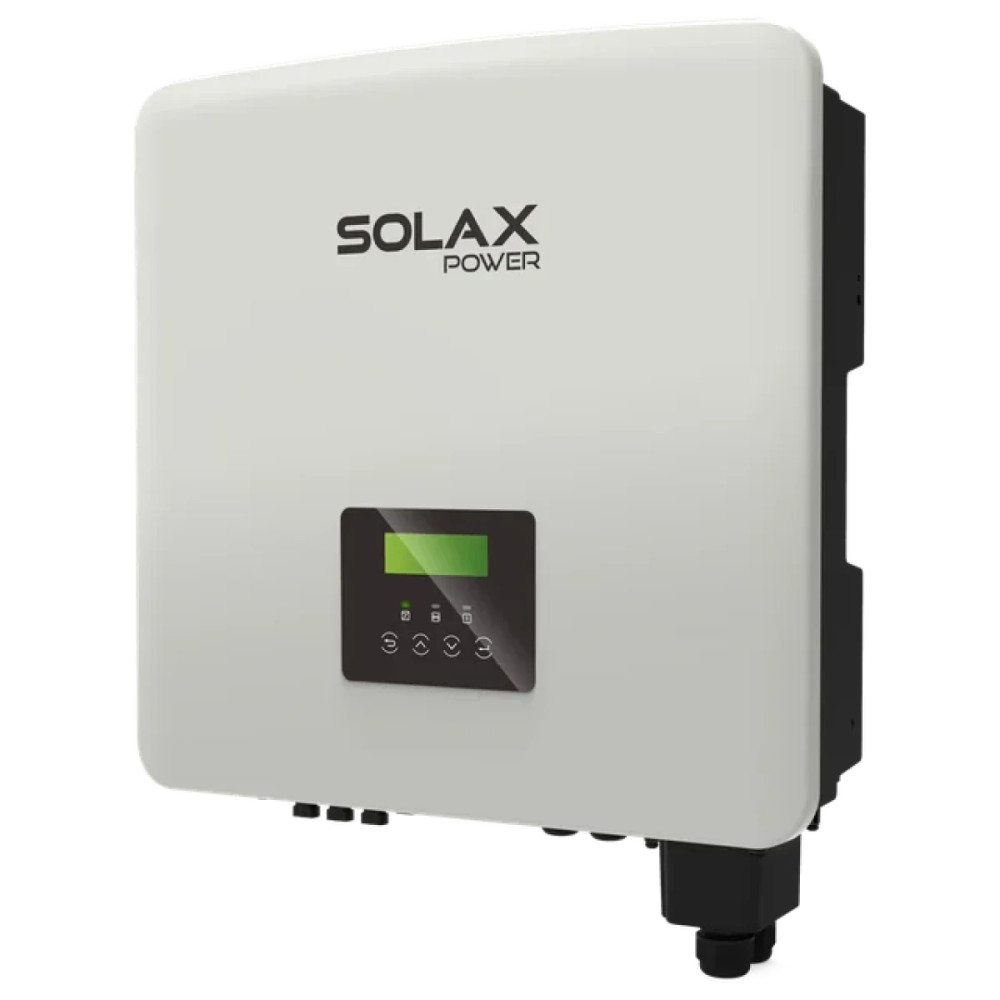

SolaX X3-Hybrid-8.0-D inverter

16000
Max. AC input current [A] 25.8
Rated AC voltage [V] 415 / 240; 400 / 230; 380 / 220
Rated AC frequency [Hz] 50/60
Power factor range 0.8 leading-0.8 lagging
Total harmonic distortion THDi (Rated power) [%] <3
Battery data
Battery type Lithium-ion battery / Lead-acid Battery
Battery voltage range [V] 180 ~ 800
Max. continuous charge / discharge current 30
EPS output (with battery)
Rated output power [W] 8000
Apparent peak power [VA] 12000, 60s
Max. continuous current [A] 11.6
Rated voltage [V]; Frequency [Hz] 400 / 230; 50 / 60
Switch-on time [ms] <10
Parallel operation Yes
System data
Max. efficiency [%] 98.0
Euro efficiency [%] 97.7
Battery charging/discharging efficiency [%] 98.5 / 97.5
Protection degree IP65
Operating temperature range [°C] -35~+60 (power reduction above 45C)
Max. Operating altitude [m] <3000
Relative operating humidity [%] 0~100
Average noise [dB] <35
Storage temperature [°C] -40~+70
Dimensions [mm] 503×503×199
Weight [kg] 30
Cooling Natural cooling
Communication interface CT/Meter (optional), External controller RS485, Pocket WiFi (optional: Pocket Lan/4G), DRM, USB Upgrade, NTC (optional)
Power consumption
Internal consumption (night) [W]
<40W standby, <5W idle
Standards
Safety EN/IEC62109-1/-2
EMC EN61000-6-1/2/3/4; EN61000-3-2/3/11/12
Certificate VDE4105, G99, G98, AS4777, EN50549, CEI 0-21, IEC61727, PEA/MEA, NRS-097-2-1, RD1699, TO
