Max. output current
5.1A
Max. Total harmonic distortion
≤ 3%
Residual current monitoring
Yes
AC overcurrent protection
Yes
AC short-circuit protection
Yes
AC overvoltage protection
Yes
Overtemperature protection
Yes
Operating temperature range
-25 - +60 °C
Relative operating humidity
0 %RH～100 %RH
Operating altitude
0 - 4,000 m
Cooling
Passive cooling
Display
Liquid crystal; built-in WLAN and FusionSolarApp connection
Communication connector
RS485
Protection degree
IP65
Safety standards
EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116
Network connection standards
G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, NRS 097-2-1,IEC61727, IEC62116, DEWA 2.0
External stock, delivery 3-4 weeks

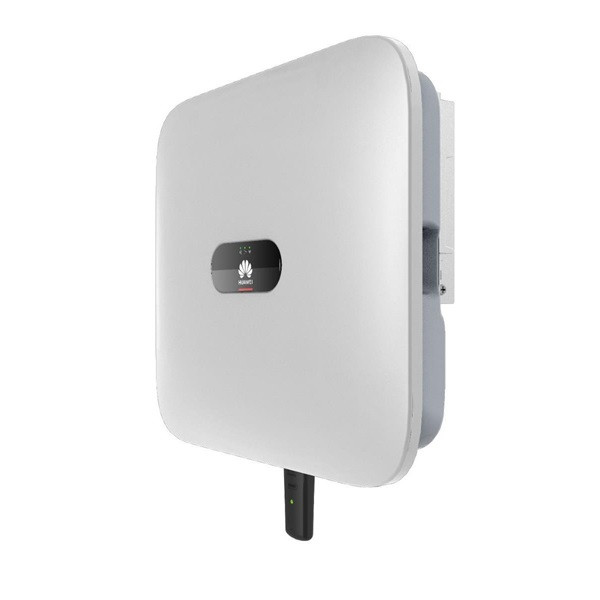

Photo for illustration only
